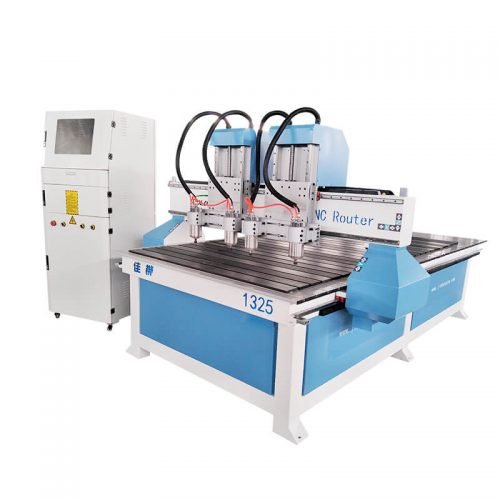

2-4 Multi Head Wood CNC Router Machine – High-Speed, Precision Woodworking
Engineered for high-volume woodworking production, this multi-head CNC router features 2–4 independently controlled spindles—each delivering synchronized cutting, milling, and engraving with industrial-grade accuracy and speed. Ideal for furniture manufacturing, architectural millwork, signage, musical instruments, and custom mold making, it supports complex 3D profiling and nested part processing with minimal operator intervention.
2-4 Multi Head Wood CNC Router Machine – High-Speed, Precision Woodworking
| Description |
Specification |
| Working Area (X × Y × Z) |
1300 × 2500 × 200 mm |
| Machine Dimensions (L × W × H) |
3100 × 2100 × 1700 mm |
| Maximum Rapid Traverse Speed |
8 m/min |
| Maximum Cutting Feed Speed |
6 m/min |
| Spindle Power |
3.0 kW |
| Spindle Speed Range |
0–24,000 rpm |
| Positioning Accuracy |
0.05 mm |
| Repeatability / Working Precision |
0.005 mm |
| Drive System |
Stepper Motor System |
| Control System |
DSP / NCStudio Control System |
| Supported G-Code Formats |
*.gcode, *.u00, *.mmg, *.plt |
| Compatible CAD/CAM Software |
ArtCAM, Type3, and other standard CAD/CAM platforms |
| Power Consumption (Without Spindle) |
1500 W |
| Input Voltage |
AC 380 V / 50 Hz |
| Operating Environment |
Temperature: 0°C to 45°C |
