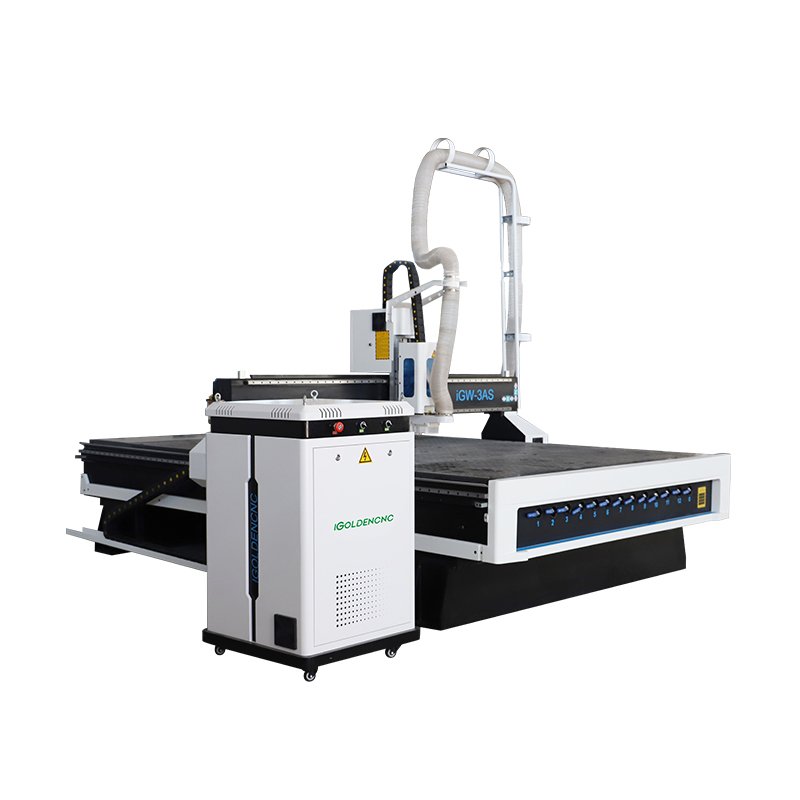

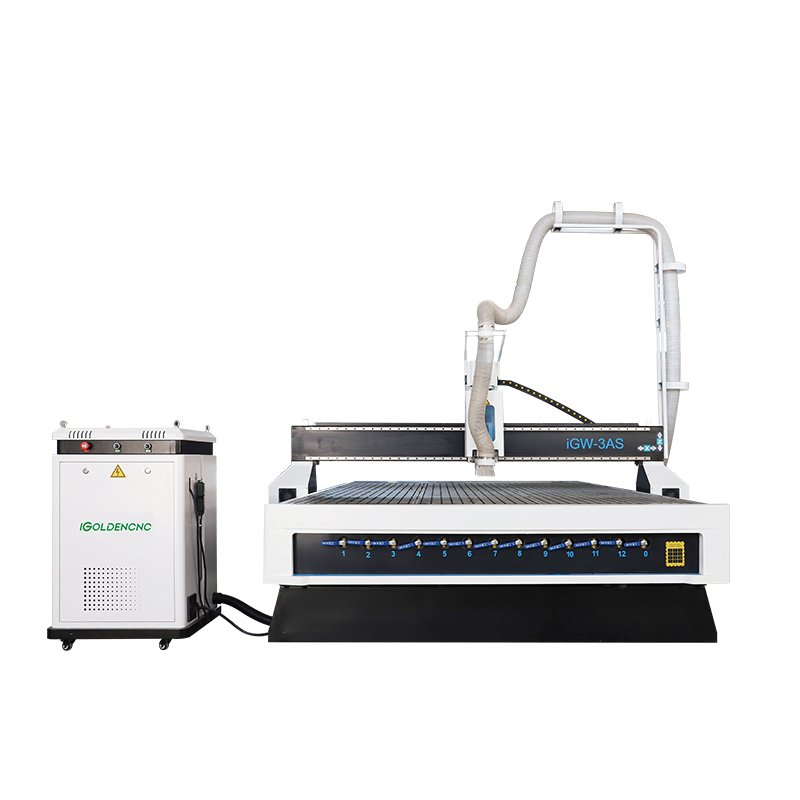

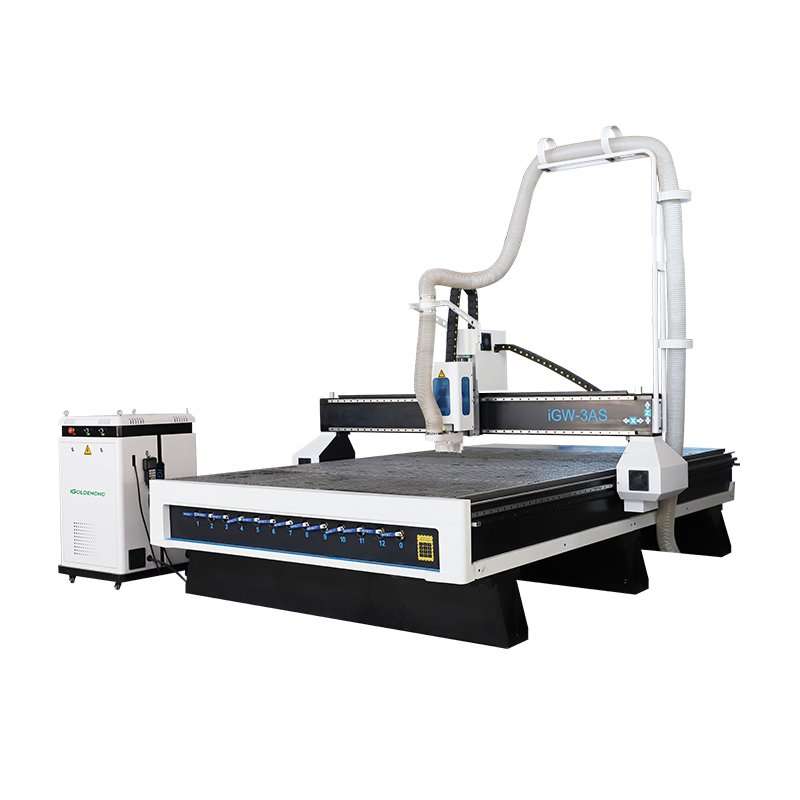

2030 CNC Wood Router with Vacuum Table – High-Precision Woodworking Machine

Key Specifications

Model	iGW-3AS
Spindle	6KW air-cooled HQD
Max Speed	20,000 mm/min
Table	Vacuum adsorption / Aluminum profile
Positioning Accuracy	0.05 mm

Estimated delivery time: Mar 29, Sunday – Apr 2, Thursday

Category:Uncategorized

Product Details

2030 CNC Wood Router with Vacuum Table – High-Precision Woodworking Machine

Engineered for industrial-grade precision and efficiency, this 2030 CNC wood router features a robust vacuum table system for secure material fixation, enabling high-speed, distortion-free machining of large wooden panels. Ideal for furniture manufacturing, cabinetry, signage, and decorative woodworking, it delivers exceptional repeatability, smooth surface finishes, and seamless integration into automated production workflows.

2030 CNC Wood Router with Vacuum Table – High-Precision Woodworking Machine

Parameter	Specification
Model	iGW-3AS
Bed Construction	Heavy-duty welded steel bed for maximum rigidity and vibration damping
Spindle	6KW air-cooled HQD spindle — high torque, low noise, extended service life
Maximum Working Speed	20,000 mm/min — optimized for high-efficiency routing and carving
Spindle Speed Range	0–18,000 rpm (variable frequency control via Fuling inverter)
Positioning Accuracy	±0.05 mm — ensured by precision linear rails and calibrated motion system
Worktable Type	Vacuum adsorption table with aluminum T-slot profile — supports multi-zone suction control for secure material hold-down
Linear Motion System (X/Y)	Taiwan HINWIN precision linear rails + hardened rack-and-pinion drive
Z-Axis Transmission	High-precision C5-grade ball screw with anti-backlash nut
Drive Motors	High-torque stepper motors with microstepping drivers for smooth, accurate motion
Inverter	Fuling high-performance VFD — precise spindle speed regulation and overload protection
Control Chassis	New standalone G8 chassis — industrial-grade enclosure with EMI shielding and thermal management
CNC Control System	DSPA11 — fully integrated DSP-based controller supporting G-code, USB/SD input, real-time jog & pause
