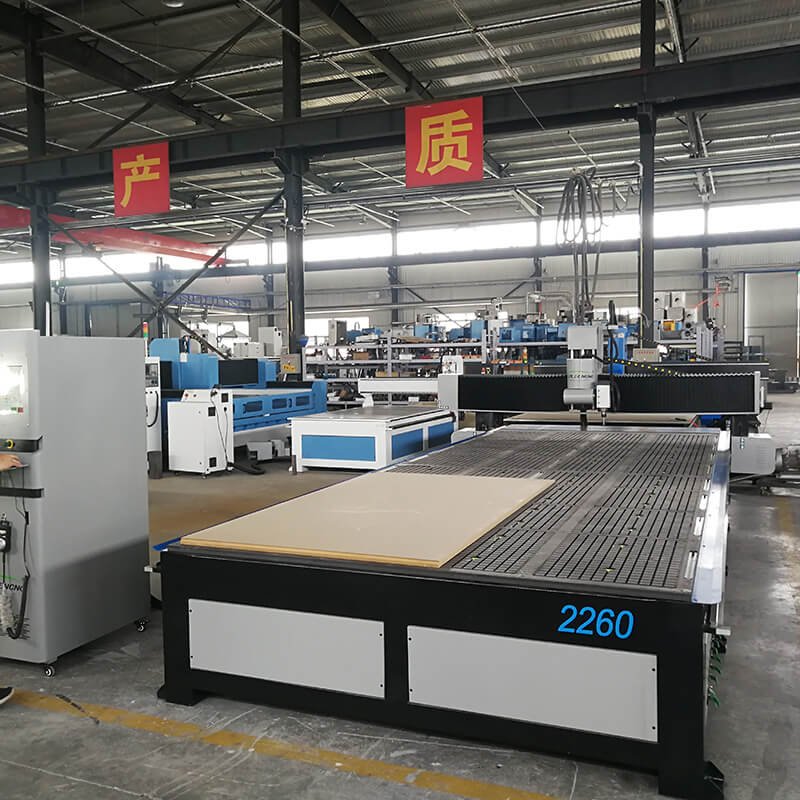

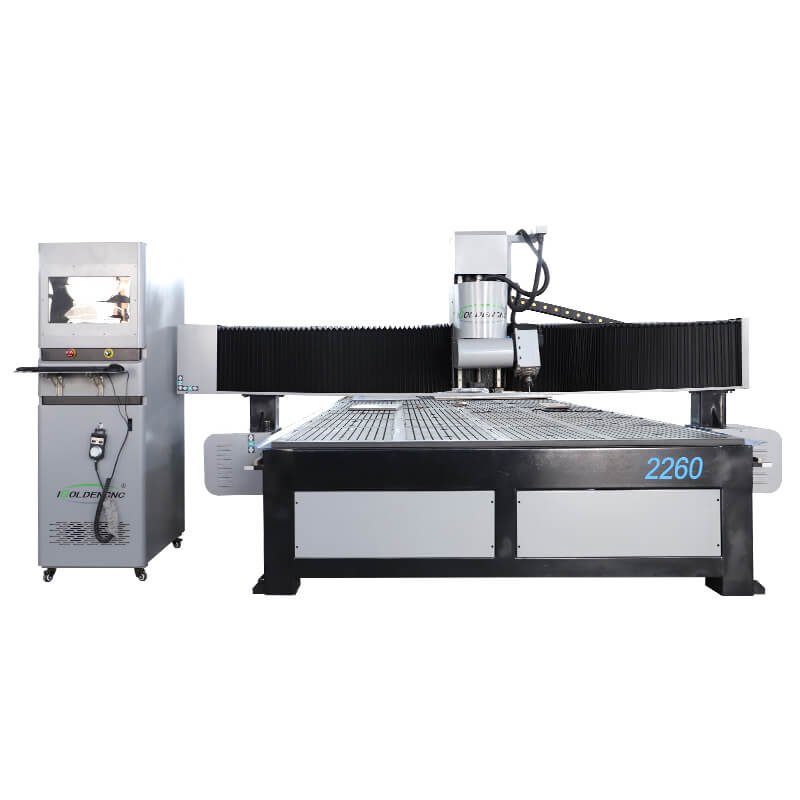

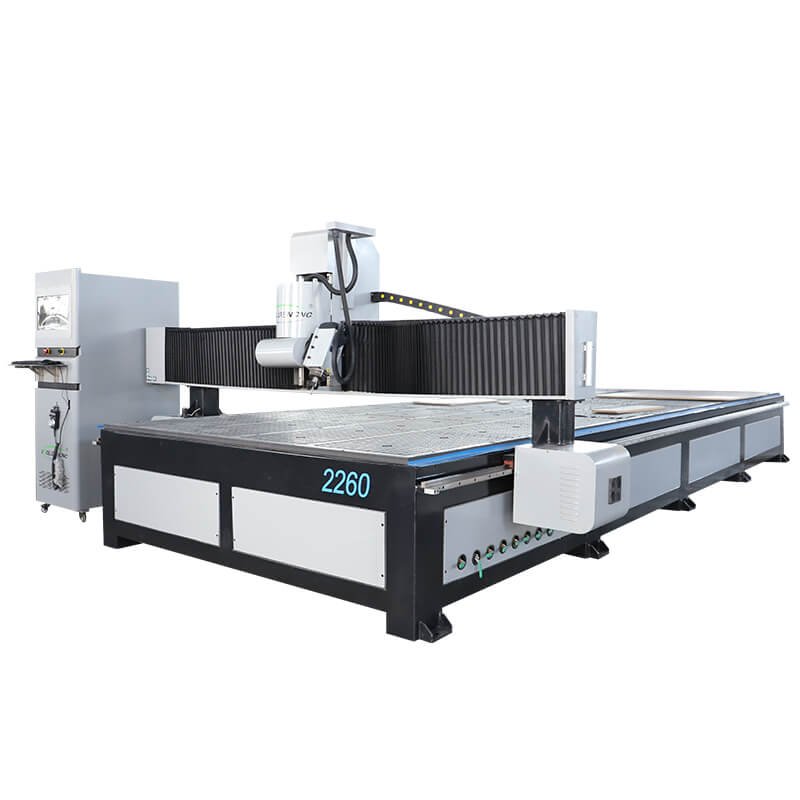

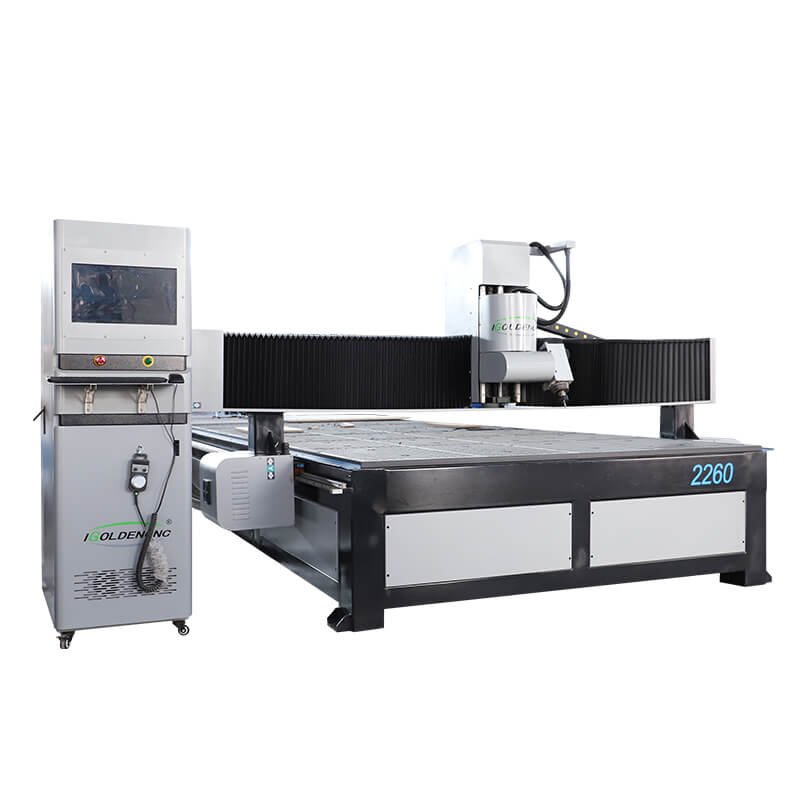

| Model |
iGW-4AS-2260 |
| Machine Stroke (X × Y × Z) |
2200 mm × 6000 mm × 200 mm |
| X-axis Travel & Accuracy |
2200 mm; Repeat Positioning Accuracy: ±0.03 mm |
| Y-axis Travel & Spindle Speed |
6000 mm; Spindle Speed: 18,000 rpm |
| Z-axis Travel & Rapid Feed |
200 mm; Idle Travel Speed: 350,000 mm/min |
| Supported File Format |
G-code (Standard CNC programming language) |
| Workbench Structure |
Class A Special Vacuum Adsorption Table — High-efficiency multi-zone suction with adjustable vacuum zones |
| Working Voltage |
380 V / 50 Hz (Three-phase industrial power supply) |
| Bed Construction |
Heavy-duty stable bed; CNC gantry milling & one-time forming processing; stress-relieved via aging tempering; high rigidity & long-term dimensional stability |
| Spindle System |
6 kW air-cooled high-performance spindle; Y-axis front/back swing capability (3-axis swing head design); enables bevel cutting and 3D contouring |
| Drive System |
Dongling 1.5 kW high-torque servo motors on all axes; Z-axis equipped with electromagnetic brake for safety and precision |
| Reducer |
Japan SHIMPO precision planetary reducer — low backlash, high efficiency, extended service life |
| Control System |
Taiwan LNC four-axis integrated CNC panel + wireless handwheel — intuitive operation, real-time axis control, ATC-compatible interface |
| Rack & Pinion |
HIWIN high-precision alloy-hardened helical rack + alloy-hardened gear shaft — smooth motion, minimal wear, high load capacity |
| Linear Guide Rails |
Three-axis imported Taiwan Shangyin or PKE square rails with dust-proof flanges and sealed sliders — enhanced durability in woodworking environments |
| Lead Screw (Z-axis) |
Taiwan high-precision wear-resistant lead screw — precise vertical positioning, low friction, long maintenance intervals |
| Electrical Components |
Schneider (France) main circuit breakers & contactors; Omron (Japan) PLCs & sensors; Chint auxiliary components — industrial-grade reliability |
| Frequency Converter |
Fuling industrial-grade frequency converter — stable speed control, overload protection, energy efficiency |
| Cabling |
Shielded, flexible, oil-resistant special CNC machine tool cables — EMI resistance, abrasion resistance, extended flex life |
| Workpiece Fixation |
Vacuum adsorption system with independent zone control — ideal for flat sheet materials (MDF, plywood, acrylic, etc.) |
| Cabinet Design |
Independent large computer cabinet — optimized heat dissipation, EMC shielding, and service accessibility |
| Dust Collection System |
Dual-stage design: floating local dust extraction + central dust collection — meets OSHA-compliant air quality standards |
| Mechanical Fasteners |
All critical transmission joints secured with ISO 12.9 high-strength alloy steel screws — anti-loosening, high preload retention |
| Lubrication System |
Microcomputer-controlled electric oil pump centralized lubrication — programmable intervals & quantitative delivery to all key points |
| Precision Assurance |
Rigid axis construction with locating pins on all precision assemblies — ensures consistent geometric accuracy over time |
| Standard Accessories |
Automatic centralized oiling system, automatic tool setting probe, set of carbide cutting tools, heavy-duty tool box |
| Compatible Software |
Fully compatible with Wentai, Type3, Jingdiao, Artcam, UG, PowerMill, and other industry-standard CAM/CAD platforms |
