4×8 Wood CNC Router for Sale – High-Precision, Heavy-Duty, Ready to Ship

Key Specifications

Working Area	1300 × 2500 × 200 mm
Spindle	9KW HQD air-cooled, 180° tilt
Vacuum System	5.5KW water-cooled pump
Control System	LNC 4-axis CNC system
Drive Motors	X/Y: 1.5KW servo + reducer; Z: 1.2KW servo with brake

Estimated delivery time: Mar 29, Sunday – Apr 2, Thursday

Category:Uncategorized

Product Details

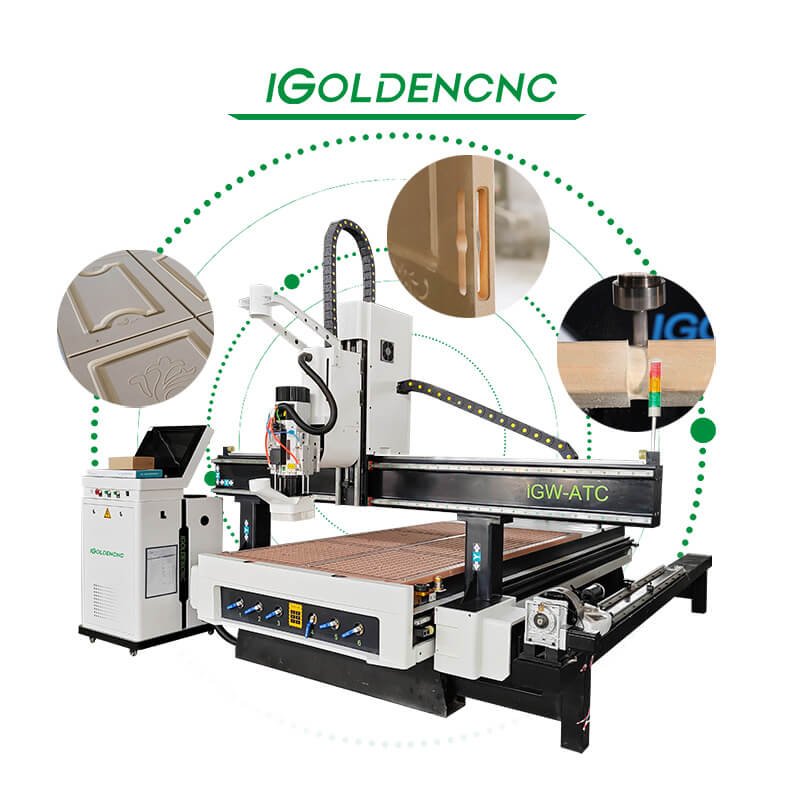

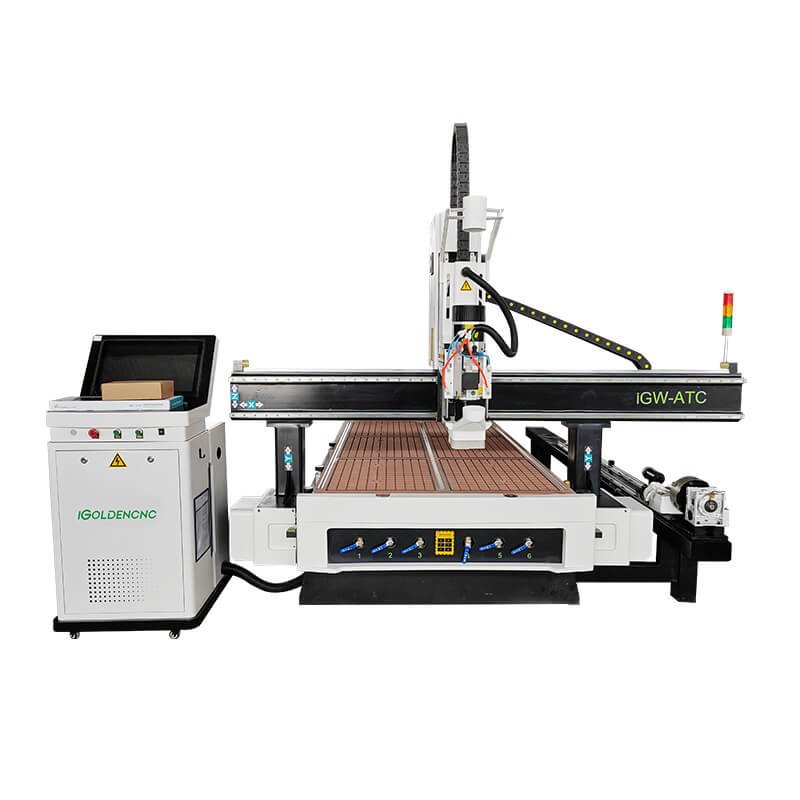

High-Precision 4×8 Wood CNC Router

A robust, ready-to-ship wood CNC router engineered for heavy-duty woodworking—delivering exceptional accuracy, repeatability, and versatility across furniture manufacturing, signage, crafts, and 3D sculpting applications.

Equipped with optional 4th-axis rotation and advanced 3D carving capability, it enables complex contours, multi-angle machining, and intricate surface engraving—maximizing productivity without compromising detail or structural integrity.

Technical Specifications

Parameter	Specification
Model	iGW-ATC
Working Area	1300 × 2500 × 200 mm (X × Y × Z)
Control System	LNC 4-Axis CNC Control System
Cabinet	LNC Industrial Cabinet
Gantry Frame	Heavy-Duty Steel Gantry Structure
Table Surface	Vacuum-Suction Table with Multi-Zone Clamping
Linear Rails	Hiwin Taiwan Linear Guideways
Spindle	9 kW HQD Air-Cooled Spindle with 180° Tilt Capability
Servo Motors (Drive)	Dongling 1.5 kW Servo Motors (X/Y Axes), 1.2 kW with Brake (Z Axis)
Gear Reducers	SHIMPO Precision Gear Reducers for X/Y Axes
Inverter	Fuling 11 kW Variable Frequency Drive
Power Supply	3-Phase 380 V / 60 Hz
Rack & Pinion	Newway Taiwan Rack & Pinion System
Vacuum Pump	5.5 kW Water-Cooled Vacuum Pump
Lubrication System	Fully Automatic Centralized Lubrication System
Dust Collector	3 kW Dual-Cylinder Industrial Dust Extraction System
