Affordable 3-Axis Wood CNC Router Machine

Key Specifications

Working Area	1300 × 2500 × 200 mm
Spindle Power	4.5 kW
Control System	NcStudio / DSP
Transmission	Germany helical rack (XY), Taiwan TBI ball screw (Z)
Voltage	3-phase 380V / 50Hz

Estimated delivery time: Mar 29, Sunday – Apr 2, Thursday

Category:Uncategorized

Product Details

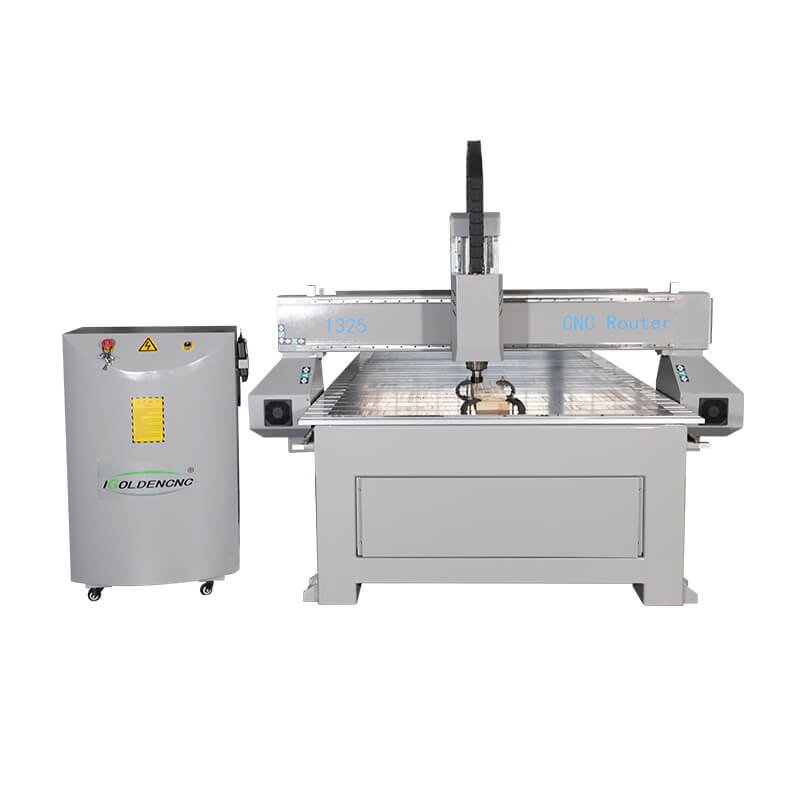

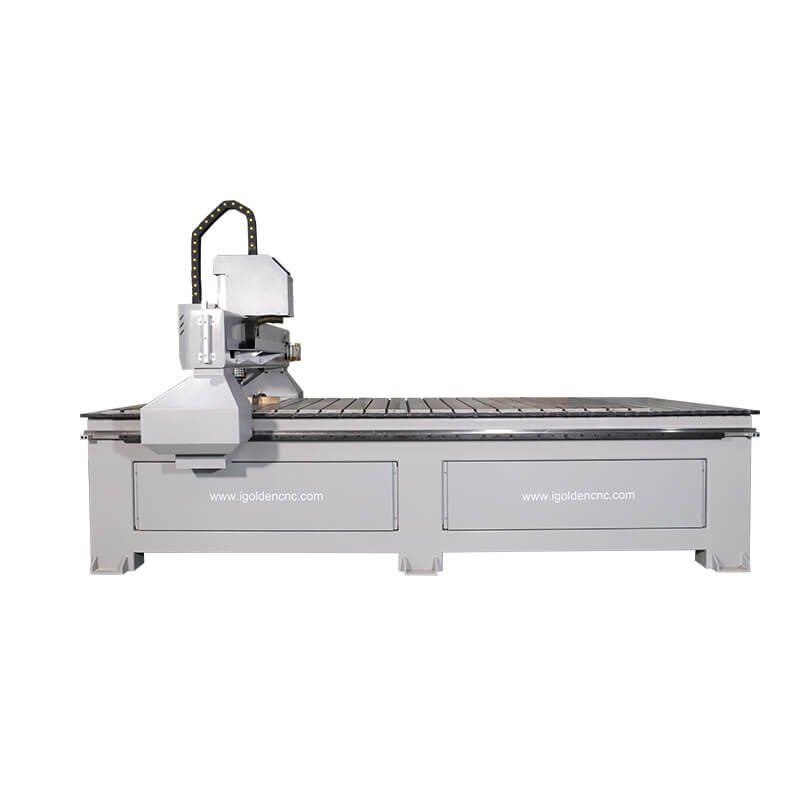

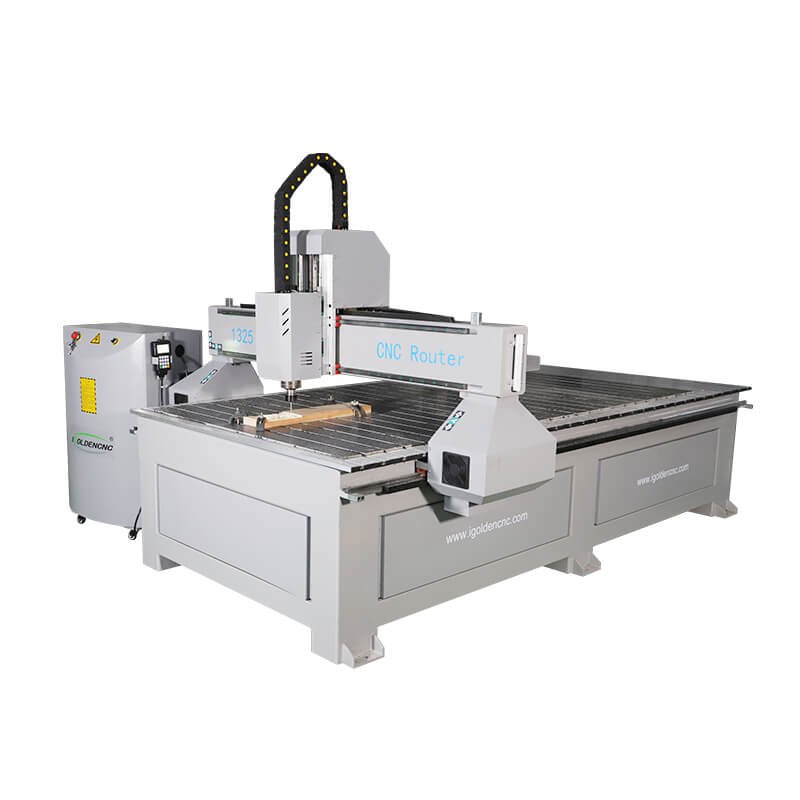

Affordable 3-Axis Wood CNC Router Machine

A precision-engineered, entry-level 3-axis CNC wood router designed for cost-conscious workshops and small-to-medium enterprises. Ideal for high-speed 2D/3D carving on wood, MDF, plywood, and composite panels — perfect for furniture components, cabinetry, signage, decorative crafts, and architectural millwork. Featuring a rigid frame, large working area, intuitive software integration, and plug-and-play operation, this machine delivers industrial-grade performance without the premium price tag.

Affordable 3-Axis Wood CNC Router Machine

Item	Specification
Model	IGW-1325 CNC Router
Working Area (X × Y × Z)	1300 × 2500 × 200 mm
Spindle Power	4.5 kW air-cooled or water-cooled (optional)
Inverter	Fuling (industrial-grade, variable frequency control)
Drive Motor Type	Stepper or Servo motor (user-selectable for precision & speed)
Motor Driver	High-resolution stepper/servo driver with microstepping support
Control System	NcStudio (Windows-based) or DSP hand-held controller (plug-and-play)
Worktable	Aluminum T-slot table with optional vacuum suction system
Transmission System	X/Y Axis: Germany helical rack & pinion (high rigidity, zero backlash) Z Axis: Taiwan TBI precision ball screw (C3 grade)
Linear Guide Rails	XYZ Axis: Taiwan linear square guide rails (HIWIN or PMI equivalent)
Ballscrew (Z Axis)	Taiwan TBI C3 precision ball screw (preloaded, high repeatability)
Machine Bed	Heavy-duty welded steel frame with reinforced square tubing (anti-vibration design)
Power Supply	3-phase 380 V / 50 Hz (custom voltage available upon request)
Overall Dimensions (L×W×H)	3000 × 1900 × 1700 mm
Vacuum Pump	Optional — High-efficiency 5.5 kW vacuum pump (for enhanced material holding)
