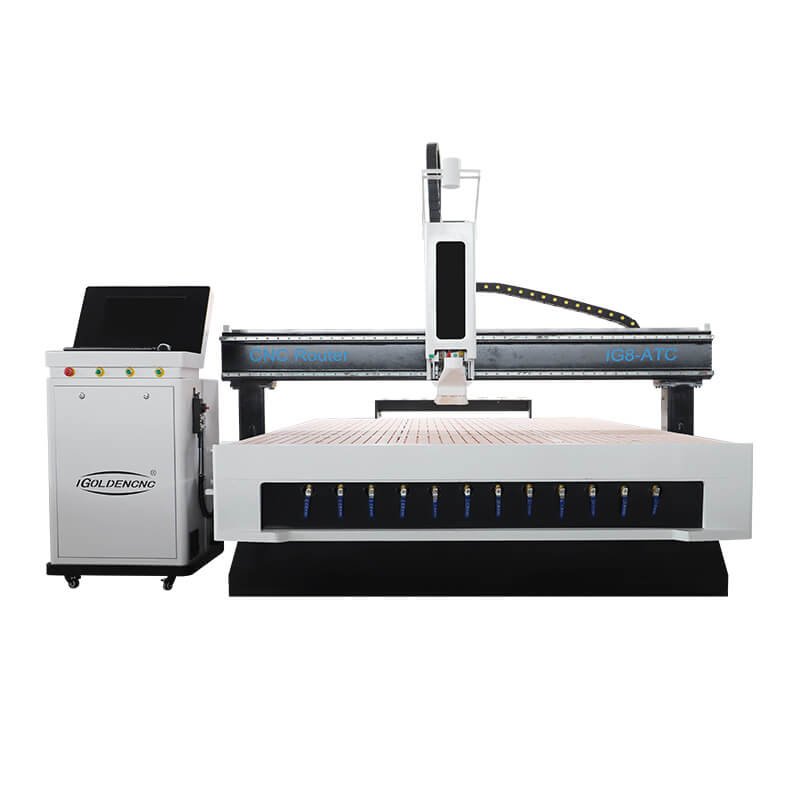

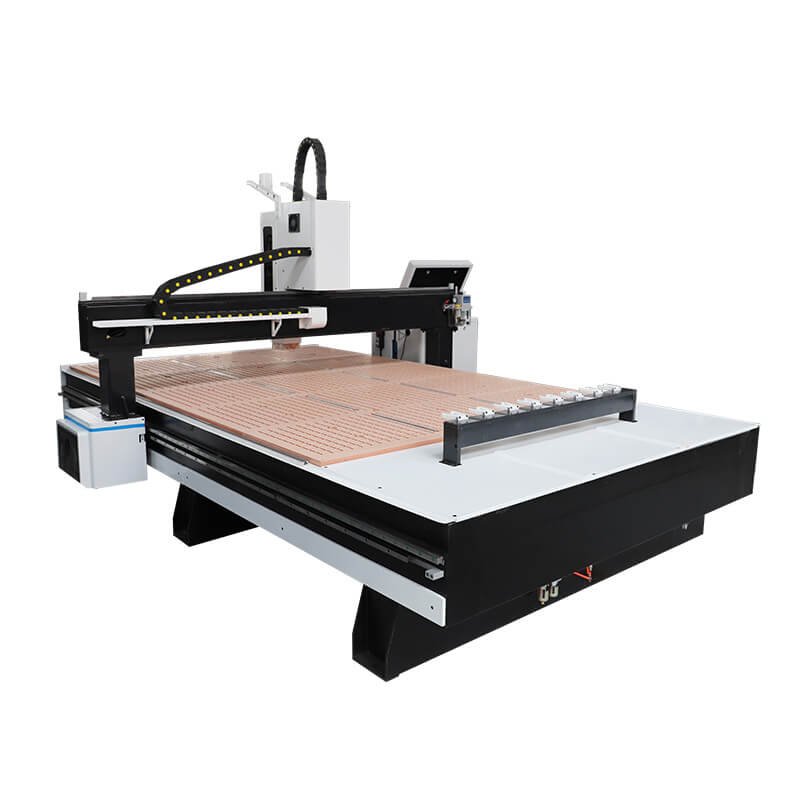

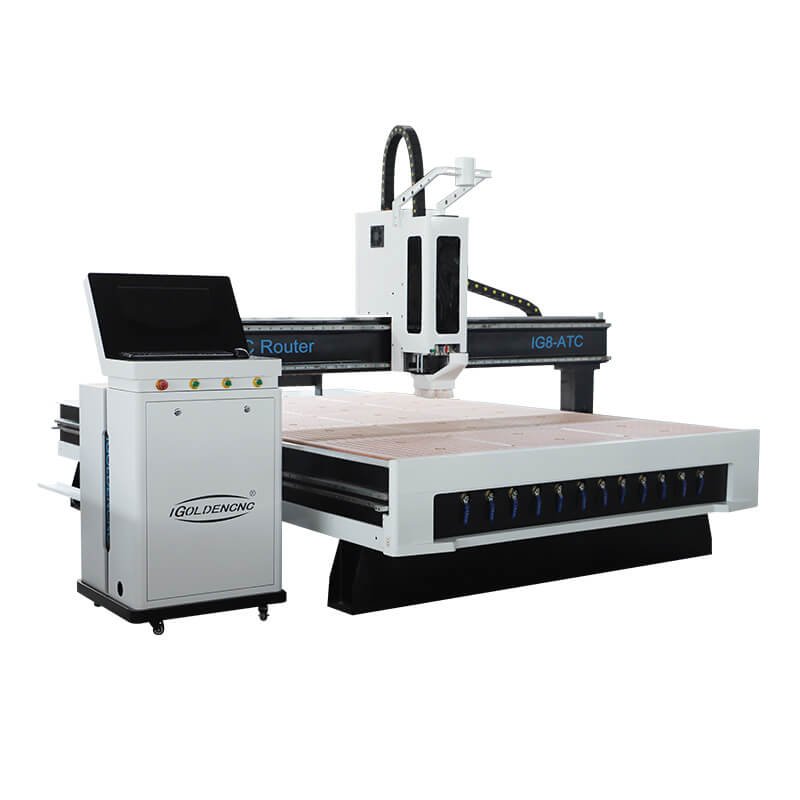

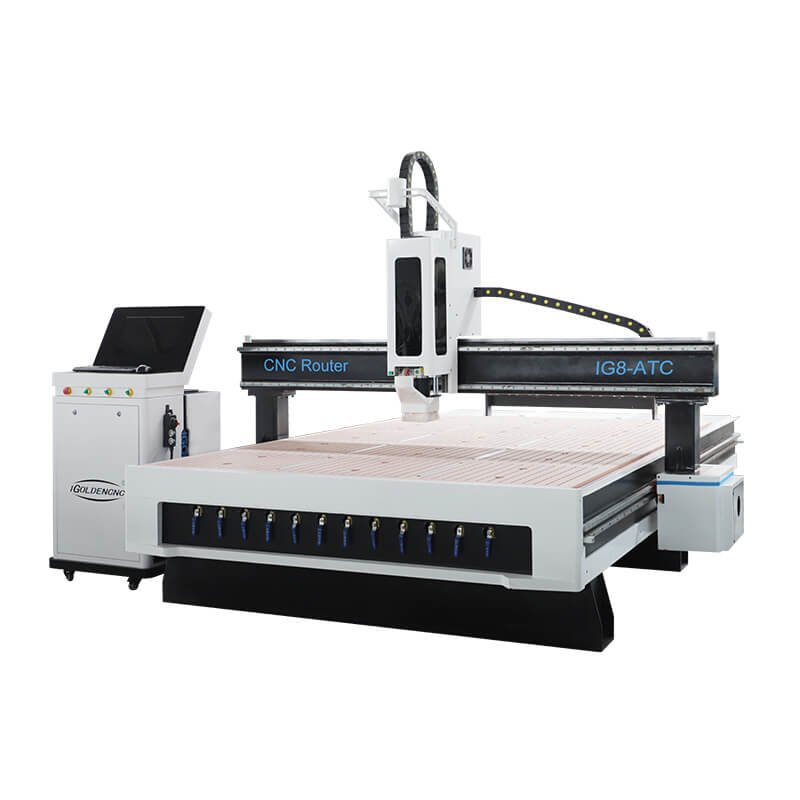

ATC Linear CNC Wood Machine for Sale – High-Speed, Precision 4-Axis Woodworking CNC

Key Specifications

Model	iGW-ATC-2131
Working Area	2100 × 3100 × 250 mm
Spindle	HQD 9.0kW Air-Cooling ATC
Control System	Taiwan LNC
Voltage	380V / 50Hz

Estimated delivery time: Mar 29, Sunday – Apr 2, Thursday

Category:Uncategorized

Product Details

ATC Linear CNC Wood Machine for Sale – High-Speed, Precision 4-Axis Woodworking CNC

Engineered for industrial efficiency and unmatched accuracy, this 4-axis linear ATC CNC router delivers rapid tool changes in under 3 seconds—fully automated, zero manual intervention. Ideal for high-volume furniture production, custom cabinetry, and architectural millwork, it combines rigid gantry construction, servo-driven precision, and intelligent motion control to ensure repeatability within ±0.02mm.

ATC CNC Router For Wood Parameter

Model	iGW-ATC-2131
Working Area	2100 × 3100 × 250 mm (X × Y × Z)
Spindle	HQD 9.0 kW Air-Cooled Automatic Tool Changer (ATC) Spindle — High torque, stable speed control, 0–24,000 RPM
Gantry Structure	Heavy-duty welded steel frame with reinforced cross-beam for high rigidity and vibration damping
Worktable	PVC-coated vacuum suction table with multi-zone independent control for secure clamping of various wood materials
Guide Rails	Taiwan HIWIN linear guide rails — Precision-ground, high-load capacity, long service life
Drive System	Dongling servo motors and drives — High response, low noise, ±0.02 mm repeatability
Gear Reducer	Japan SHIMPO precision planetary reducer — High efficiency, backlash < 1 arcmin
Frequency Converter	Fuling / Delta industrial-grade VFD — Stable power output, intelligent overload protection
Vacuum Pump	7.5 kW air-cooled vacuum pump — Continuous operation, ≥95 kPa suction pressure
Control System	Taiwan LNC industrial CNC controller — Full ATC logic support, G-code compatibility, USB & LAN interface
Dust Collection System	3 kW double-bin industrial vacuum cleaner — Integrated ducting, HEPA filtration option available
Power Supply	380 V AC, 3-phase, 50 Hz (customizable to 400 V / 60 Hz upon request)
