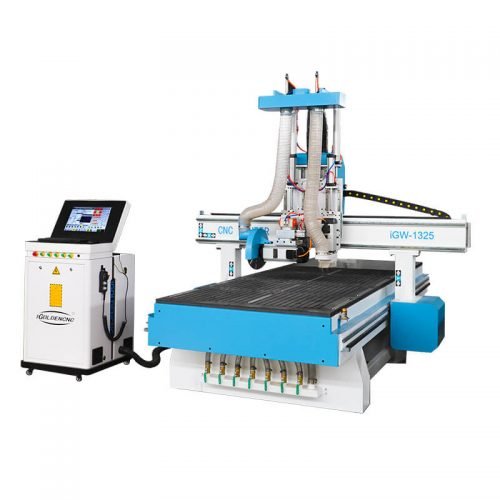

Wood Cutting CNC Router Machine With Saw Blade – High-Precision, 3-Axis, 6kW Spindle
Engineered for industrial woodworking excellence, this high-precision 3-axis CNC router integrates a powerful 6kW spindle and an integrated saw blade module—enabling simultaneous cutting, grooving, engraving, and full-panel sizing of MDF, particleboard, and solid wood. Built to European quality standards, it features an automated push-feed system under the gantry, optimized workflow efficiency, and cost-effective performance ideal for cabinet and furniture manufacturing.
Wood Cutting CNC Router Machine With Saw Blade – High-Precision, 3-Axis, 6kW Spindle
| Parameter |
Value |
| Machine Type |
Wood Cutting CNC Router with Integrated Saw Blade
|
| Axes Configuration |
3-Axis (X, Y, Z) simultaneous control
|
| Spindle Power |
6 kW air-cooled or water-cooled high-torque spindle
|
| Positioning Accuracy |
±0.02 mm
|
| Repeatability |
±0.01 mm
|
| Working Area (L × W × H) |
Standard: 1300 × 2500 × 200 mm (customizable)
|
| Control System |
Syntec / DSP / NC Studio / Mach4 (user-selectable)
|
| Drive System |
High-precision servo motors with planetary reducers
|

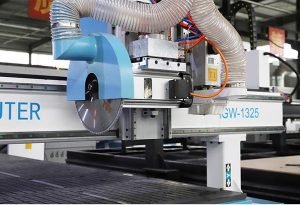

| Saw Blade Integration |
Motorized vertical saw unit (optional upgradable to oscillating knife or drilling head)
|
| Frame Construction |
Heavy-duty welded steel frame with vibration-damping base
|
| Cooling & Lubrication |
Automatic centralized lubrication system; optional spindle cooling
|
| Additional Features |
|
